/ 5000 SERIES

Heavy duty and

long-lasting running

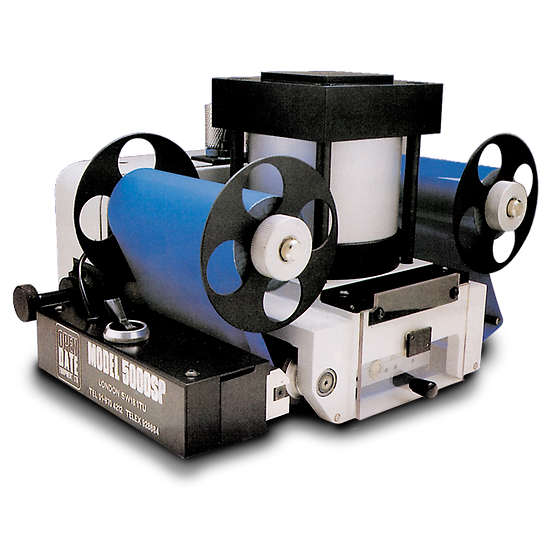

The Open Date 5000 Series of automatic hot foil overprinters are high quality, heavy duty machines. They are designed to be attached to reel fed packaging machines to provide a large area on-line printing facility for logos graphics, dates and bar codes.

accurate

  • Up to 100 prints per min.

  • Fully variable temperature control

  • Digital electronic control unit

  • Integral solenoid valve

  • Can span multiple lanes

main features

quality

  • Unsurpassed print quality

  • Easy to install on packaging/label machines

  • Precision engineered design

  • Slide in type holder including lock

INTELLIGENT

  • Positive foil drive with infinite adjustment

  • Dwell times of up to 650 milliseconds

MULTI-LANE PRINTING

Given their large print area, 5000 Series printers can also span multiple lanes on sachet and labelling machines enabling a single printer to be used instead of one smaller printer per lane.

STANDARD DISPLAY

The 5000's digital display controller enables simple yet precise control of print dwell times and operating temperatures to provide the optimum print quality. It features indicators for end of foil, heater failure and temperature sensor failure. The option for an upgraded touch screen version is also available.

TYPE HOLDERS

The 5000 series uses slide in type holders which utilises steel and brass type, rotary numbering units for user changed data and printing dies for logos or graphics

specifications

 Maximum print area

 Operating speed

 End of foil alarm

 Dwell time range

 Maximum foil width

 Maximum foil length

 Operating air pressure

 Temperature range

 Supply Voltage

Up to 150 X 100mm

(5.91" x 3.94")

Up to 100 per min.

Optional

12 - 650 milliseconds

165mm (6.5")

305m (1,000ft)

4.0 to 6.8 bar (60 to 100 psi)

Variable 70°C to 220°C

100/240v AC, 50/60Hz

 IDEAL SOLUTION FOR  ....
FOOD & BEVERAGE
PHARMACEUTICAL
COSMETICS
OTHER
